Industrial Metal Portable Hardness Tester 6V NI-MH High Performance

Name: Industrial Metal Portable Hardness Tester 6V NIMH High Performance
Brand: SADT
Price: 10 USD

China Industrial Metal Portable Hardness Tester 6V NI-MH High Performance wholesale

Brand Name : SADT

Model Number : -

Certification : ISO9001 SGS

Place of Origin : China

MOQ : 1pcs

Price : USD10-300/Pcs

Payment Terms : Western Union, T/T， Paypal

Supply Ability : 5000Pcs/months

Delivery Time : 5-8 works days

Packaging Details : Carrying case with carton

Warranty : 12 months

Product name : HBC portable hammering Brinell hardness tester

Battery pack : 6V NI-MH

Charging power supply : 220VAC

Key words : Metal hardness tester

certification : ISO9001 SGS

Contact Now

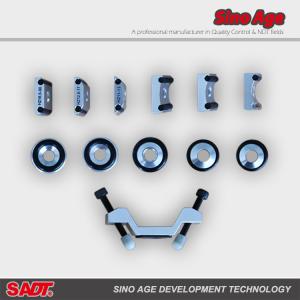

Impact Body & Support Rings

SADT provides optional accessories to satisfy customers’ different requirements, which includes impact bodies, standard support rings, special support rings and etc.

Specifications

Part No.	Size(mm)	Suitable for the following test surfaces
Support rings for impact devices D/DC/D+15/C/E
D6	Ø19.5×5.5	plane/cylindrical/hollow-cylindrical/spherical/hollow-spherical R≥60mm
D6a	Φ13.5×5.5	plane/cylindrical/hollow-cylindrical/spherical/hollow-spherical R≥30mm
D6b/D+15	Φ13.5×10.8×5.5	plane/cylindrical/hollow-cylindrical/spherical/hollow-spherical R≥30mm
Z 10-15	20×20×7.5	cylindrical, R10mm-15mm R<10mm not possible, R≥30mm D6/D6a
Z 14.5-30	20×20×6.5	cylindrical, R14.5mm-30mm
Z 25-50	20×20×6.5	cylindrical, R25mm-50mm
HZ 11-13	20×18×5	hollow-cylindrical, R11mm-13mm
HZ 12.5-17	20×20×5	hollow-cylindrical, R12.5mm-17mm
HZ 16.5-30	20×20×5	hollow-cylindrical, R16.5mm-30mm
K 10-15	Φ20×7.7	spherica, R10mm-13mm
K 14.5-30	Φ20×6.7	spherica, R14.5mm-30mm
HK 11-13	Φ17×5	hollow-spherical, R11mm-13mm
HK 12.5-17	Φ18×5	hollow-spherical, R12.5mm-17mm
HK 16.5-30	Φ20×5	hollow-spherical, R16.5mm-30mm
UN	Φ52×20×16	Universal
K 10-15	Φ20×7.7	spherica, R10mm-13mm
K 10-15	Φ20×7.7	spherica, R10mm-13mm
Notes:	R<10mm not possible, R≥30mm D6/D6a
Support rings for impact device G
G6	Φ29.5×7	plate / cylindrical / hollow-cylindrical / spherical / hollow-spherical R≥100mm
G6a	Φ19.5×7	plate / cylindrical / hollow-cylindrical / spherical / hollow-spherical R≥50mm

Standard Support Ring

D6a

D6b/D+15

G6a

Special Support Ring

Z10-15

Z14.5-30

Z25-50

HZ11-13

HZ12.5-17

HZ16.5-30

K10-15

K14.5-30

HK11-13

HK12.5-17

HK16.5-30
