Concrete Test Hammer HT-225A for Civil Engineering , Construction

Product Categories

SINO AGE DEVELOPMENT TECHNOLOGY, LTD.

Contact Now

Name: Concrete Test Hammer HT225A for Civil Engineering Construction
Brand: SADT
Price: 60 USD

Place of Origin : Beijing

Brand Name : SADT

Certification : CE ISO9001

Model Number : HT-225A

MOQ : 1pc

Packaging Details : Standard package

Delivery Time : Within 3 days after receiving payment

Payment Terms : T/T in advance, Western Union

Supply Ability : 50pcs/week

Price : USD60-150/Pcs

testing range : 10-70N/mm2

key words : concrete test hammer

Maximum breakdown friction of rider : 0.49-0.78N(50-80g)

Meanvalue of steel-anvil rating of hammer : 80±2

Punch advance for impac t hammer : 75mm

Application : for testing ordinary building and bridge construction

Dimension (mm) : 60x280

Net weight : 1.0kg

Contact Now

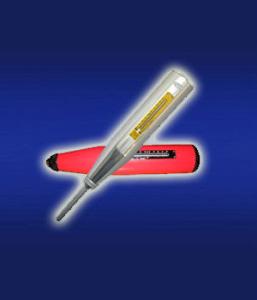

Portable Schmidt Hammer concrete test hammer HT-225A

Product Introduction

HT-225A is used for testing the strength of various concrete members (slab, beam, column, truss) of normal building strength and bridge.

Specifications


Model	HT 225A
Nominal kinetic energy	2.207J(0.225kgf.m)
Flip tension spring rigidity	7.84N (0.80kgf)/cm
Punch advance for impact hammer	75mm
Impact surface hardness value between impact hammer and rod	HRC59-63
Maximum breakout friction of pointer system	0.49-0.78N(50-80g)
Mean-value of steel-anvil rating of concrete test hammer	80+/-2
Standards	ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993
Dimension	60x280mm
Net weight	1kg

Standard package - HT-225A
HT225A main unit 1
Grinding wheel 1
Screw driver 1
Spring 1
Operation manual 1
Carrying case 1
